Description
Features
Ballasting Requirements
- Ballast required
Specifications
- Country of Origin: China
- Length: 22.5 In.
- Weight: 0.91 Lbs.
- Substitute: S11972
- Warranty: 5 Year Limited - 3 hr per day
- ANSI Base: G13
- Beam Spread: 230
- CCT Selectable: No
- CO Terse: Lawful for sale
- HI Terse: Lawful for sale
- NV Terse: Lawful for sale
- VT Terse: Lawful for sale
- Color Temp: Cool White
- CRI: 82
- Dimmable: Non-Dimmable
- DLC Approved: Yes
- DLC Classification: Standard
- DLC ID: PKWDYEW9
- DLC Primary Use: Replacement Lamps (plug and play) (UL Type A)
- Enclosure Rating: Enclosed Rated Lamp
- ENERGY STAR: No
- FCC Compliant: Yes
- Finish: Frost

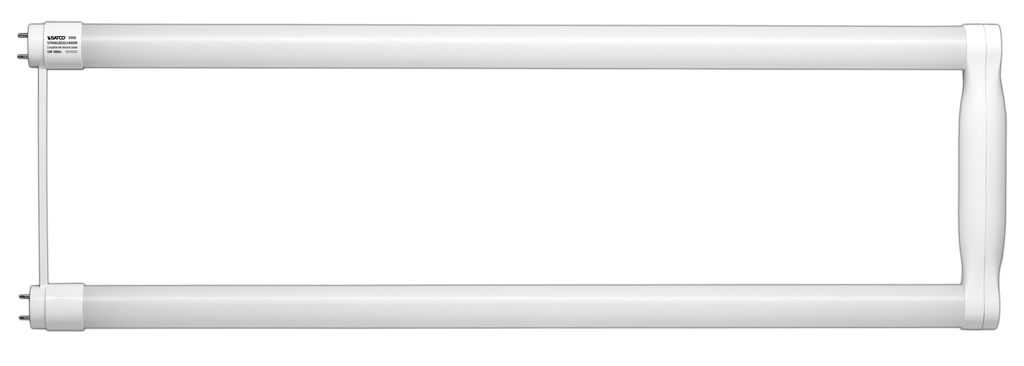

- Product Type: U-Bend
- Flr Equiv: 32W
- Avg Rated Hours: 50000
- Housing Color: White
- Lamp Base: Medium Bi Pin
- Lamp Shape: T8
- Lamp Ballast Type A/B/C: Type A
- Leg Spacing: 6 in.
- Lensed: Lensed Lamp
- Lens Finish: Frost
- Lumens: 1800L
- MOD Decimal: 1 in.
- MOL Decimal: 22.5 in.
- NSF Approved: Yes
- Power Factor: 0.9
- Rated For Enclosed Fixture: Yes
- Rated For Vapor Tight Fixture: No
- Replaces: S9296
- RoHS Compliant: Yes
- Safety Listing: cULus
- Location Rating: Damp
- Technology: LED
- Temperature (CCT): 4000K
- Watts: 11.5W
Downloads
Spec SheetLighting Facts
More Information
Manufacturer Catalog Number
S9996
Weight
0.91
Length
22.5
Country of Origin
China
Average Rated Life
50000 hours
Beam Spread
230
Color Temperature
Cool White
Correlated Color Temperature
4000 kelvins
Dimmable (Y/N)
No
Finish
Frosted
Housing Color
White
Lens Color
Frost
Lumens
1800 lumens
Power Factor
0.9
Technology Type
LED
Type
U-Bend
Warranty Length
5 years
Wattage
11.5 watts
Wet Location
Damp
