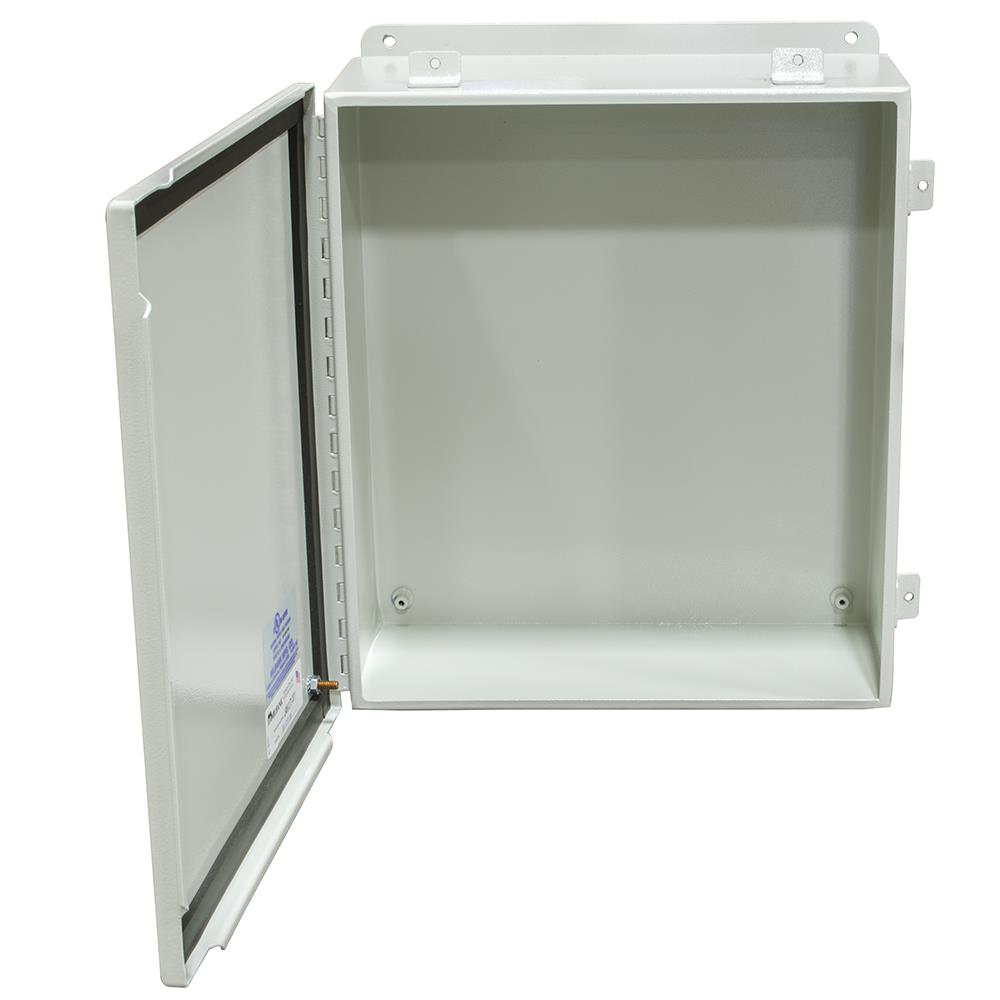

10x6x10 Hinge Cover Type 4 UL Listed Steel Enclosure – Electrical Distributor Lighting Solutions

This 10x6x10 Hinge Cover Type 4 enclosure is designed for mounting electrical equipment in demanding environments, making it suitable for electrical distributors and switchgear suppliers seeking reliable lighting solutions and wire and cable protection. Constructed from steel with a powder coat finish, this enclosure provides robust protection against environmental factors, ensuring safe housing for electrical components in both indoor and outdoor applications.

Specifications

• Manufacturer: Milbank
• Material: Steel with Powder Coat Finish
• Dimensions (H x W x D): 10 in x 6 in x 10 in
• Color: ANSI 61 Gray
• Weight: 11 lbs
• Mounting Type: Wall Mount
• Door Type: 1 Gasketed Door
• Latch Type: Clamps and Screws on Three Sides
• Cable Entry: No Knockouts
• Construction: Welded
• NEMA Rating: Type 4 UL Listed
• Application: Enclosure for Mounting Electrical Equipment
• Manufacturer Part Number: HC10106JIC4

Features

• Continuous hinge with removable pin for durability and ease of access
• Oil-resistant gasket applied to door for enhanced sealing
• Clamps and screws secure door on three sides for secure closure
• External mounting feet allow for straightforward wall or machinery mounting
• Welded seams ensure structural integrity and environmental protection
• UL 50 and CUL 50 Listed, compliant with Type 4 and 4X standards
• ANSI-61 gray powder coat finish provides corrosion resistance and aesthetic consistency
• Designed for use in environments subject to rain, sleet, snow, windblown dust, and hose-directed water

Downloads and Links

• Continuous Hinge Cover Enclosures Catalog (Type 4 & 4X)
• Installation Instructions
• UL and CSA Certification Documents
• Important Notice for Installation and Utility Requirements
