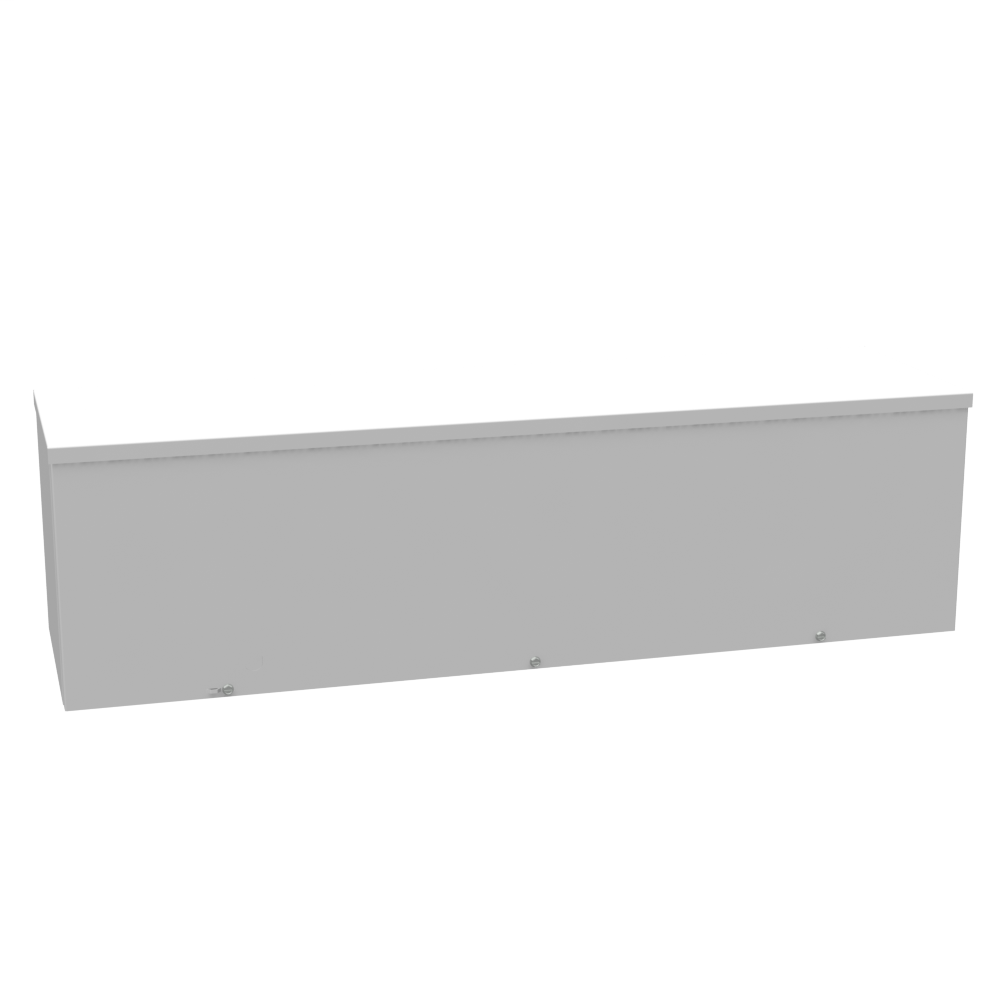

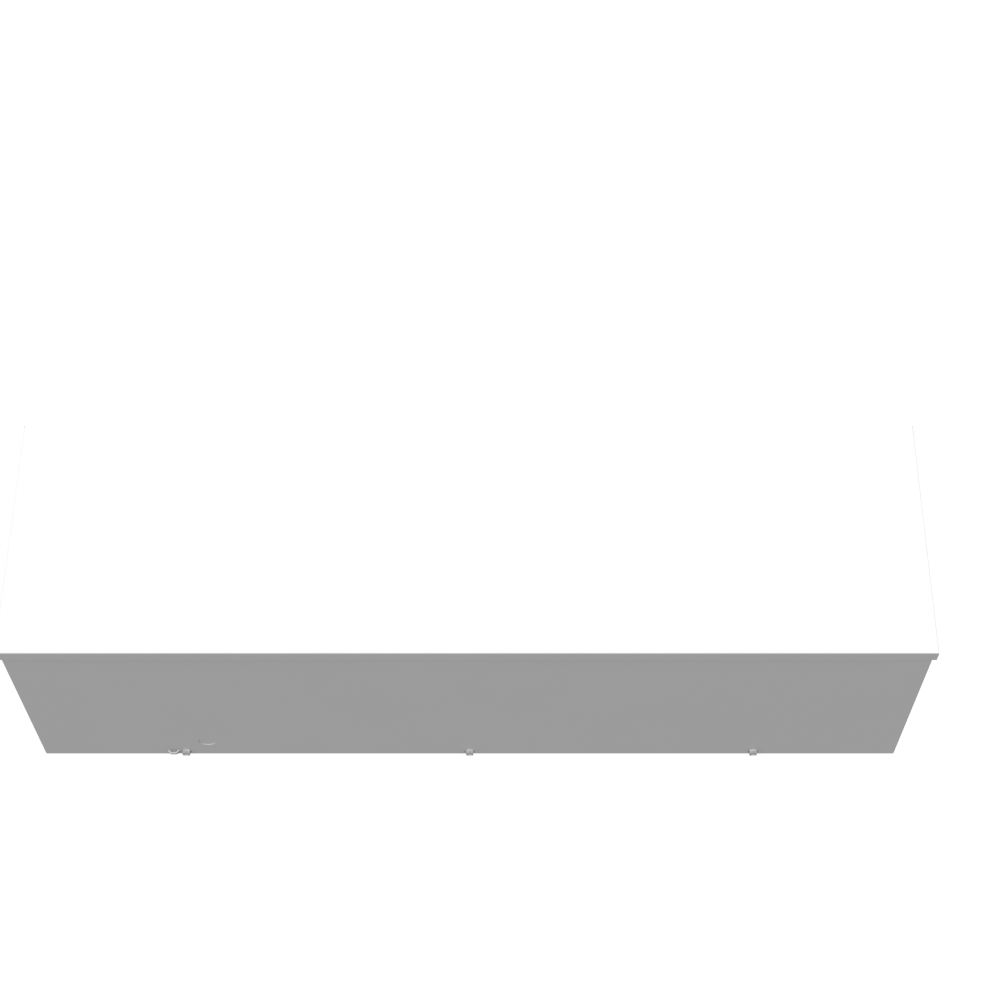

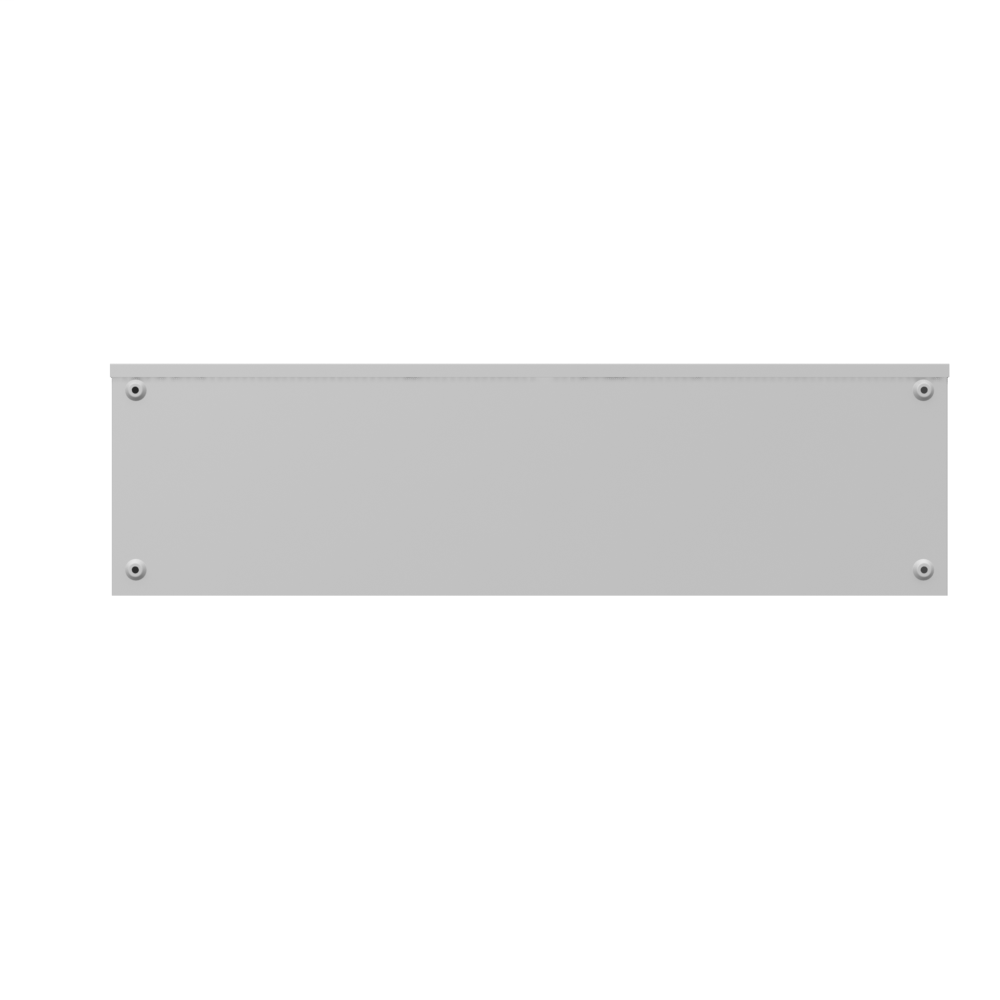

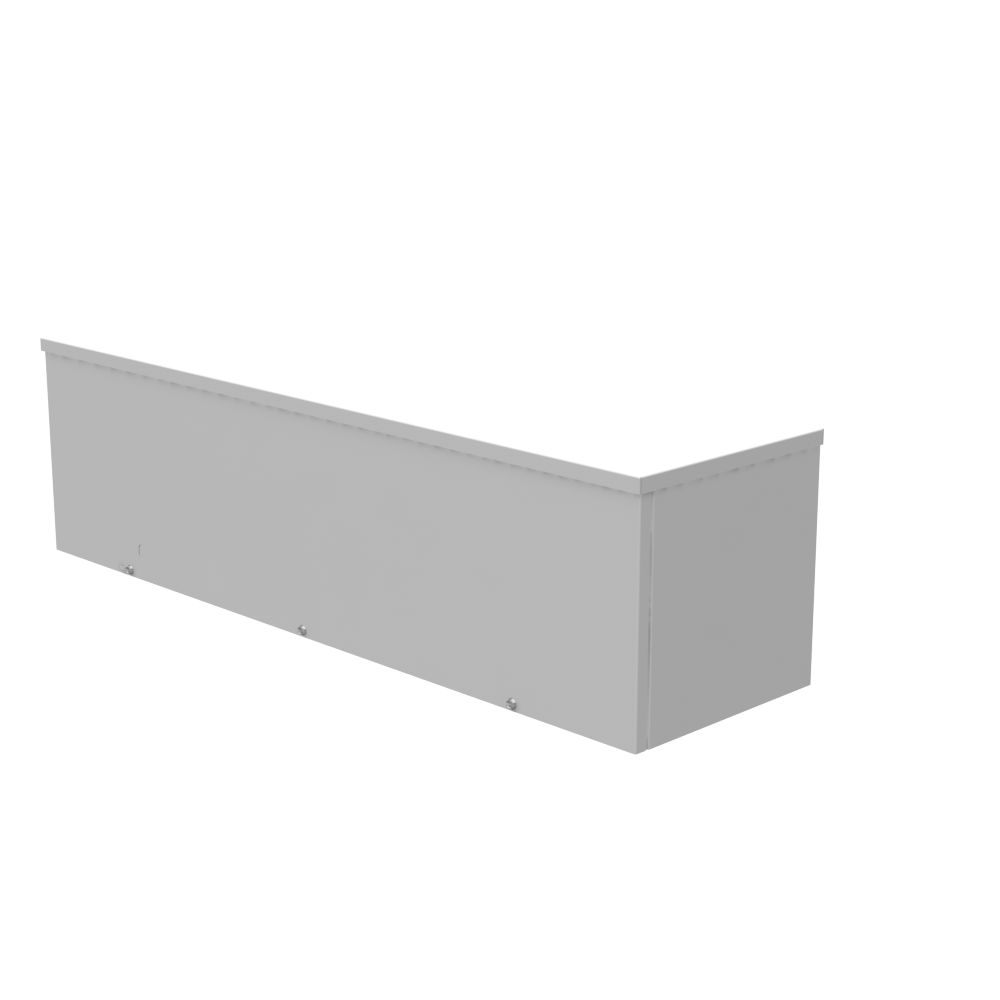

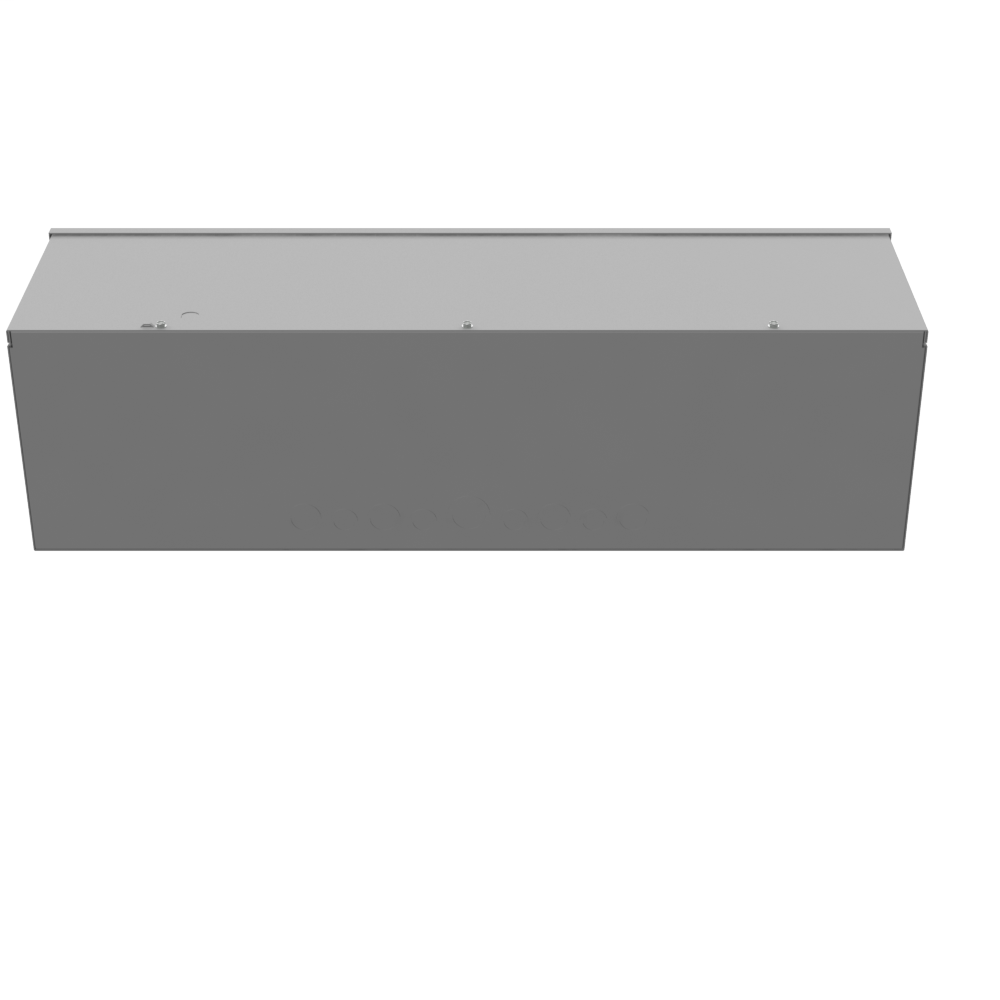

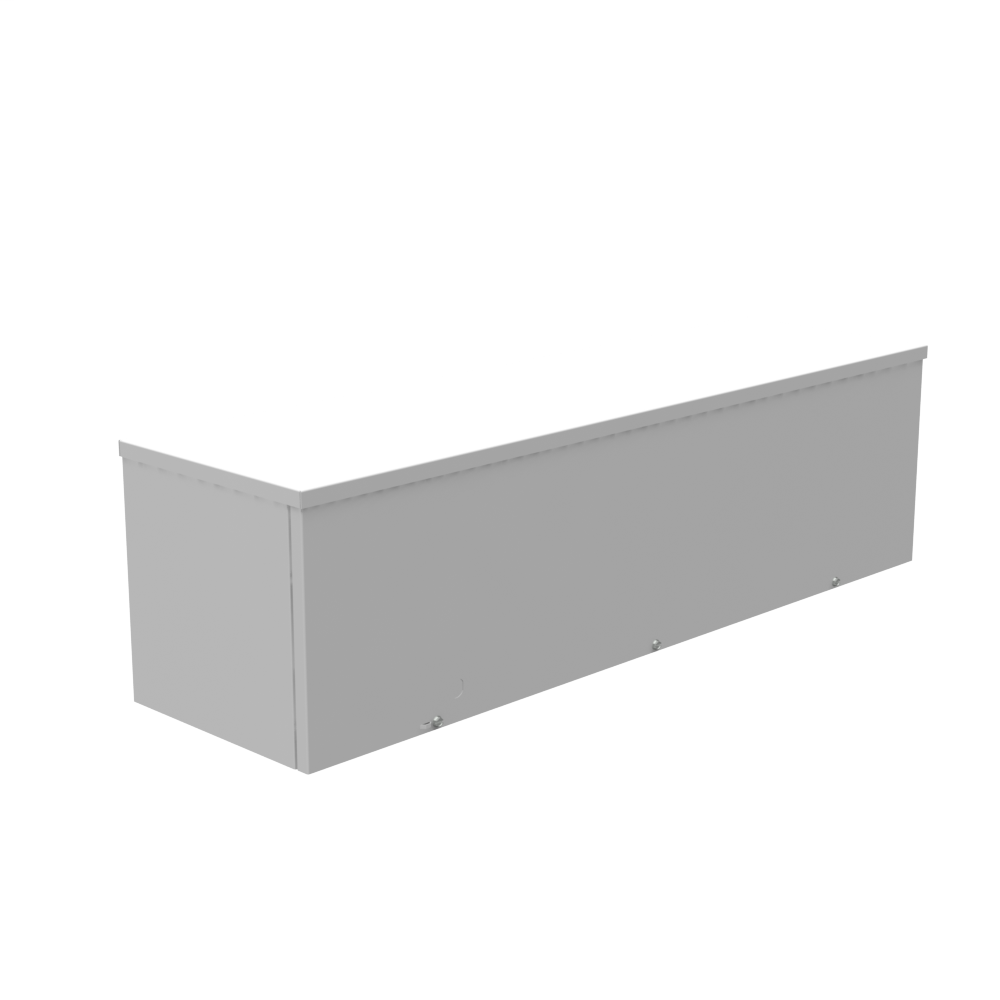

10x36x10 Screw Cover Wireway Type 3R UL Listed Steel Knockouts ANSI 61 Gray Quad D Knockout For Lock

This wireway is designed to protect electrical wiring in outdoor and indoor applications, providing a durable solution for electrical distributors and switchgear suppliers. It is suitable for installations requiring protection against rain, sleet, snow, or dripping water, making it ideal for lighting solutions, wire and cable management, and electrical distribution in harsh environments.

Specifications

• Application: Wireway
• Material: G90 Galvanized Steel
• Finish: ANSI 61 Gray Powder Coat Finish
• Dimensions (H x W x L): 10 x 10 x 36 inches
• Nominal Cross Section: 10 x 10 inches
• Product Weight: 30 lbs
• Cover Type: Screw Cover
• Knockouts: Yes
• NEMA Rating: Type 3R
• Enclosure Type: Outdoor Enclosure
• Manufacturer: Milbank
• Manufacturer Part #: 101036-GSC3R

Features

• Constructed from 16 gauge G90 galvanized steel for durability and corrosion resistance
• ANSI 61 gray polyester powder coating provides additional protection against environmental elements
• Screw cover design fits under drip shield top and is secured with plated steel screws
• Includes concentric knockouts on the bottom for flexible wiring entry options
• Embossed mounting holes on the back for easy installation
• Equipped with a knockout for key locking cylinder latch to enhance security
• UL Listed for horizontal runs, meeting industry safety standards

Downloads & Links

• Spec Sheet
