Features

• Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.

Specifications

• Country of Origin: United States
• Buy American Compliant: Contact Manufacturer
• Dimensions: 5 in x 10 in x 0.1 in
• Width: 10.000 in
• Each - Width: 10.000 in
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
• Application: Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
• Color: Gray
• Finish: Powder Epoxy Paint
• Height: 0.1 in
• Hub Size: 1"
• Length: 5 in
• Special Features: Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.

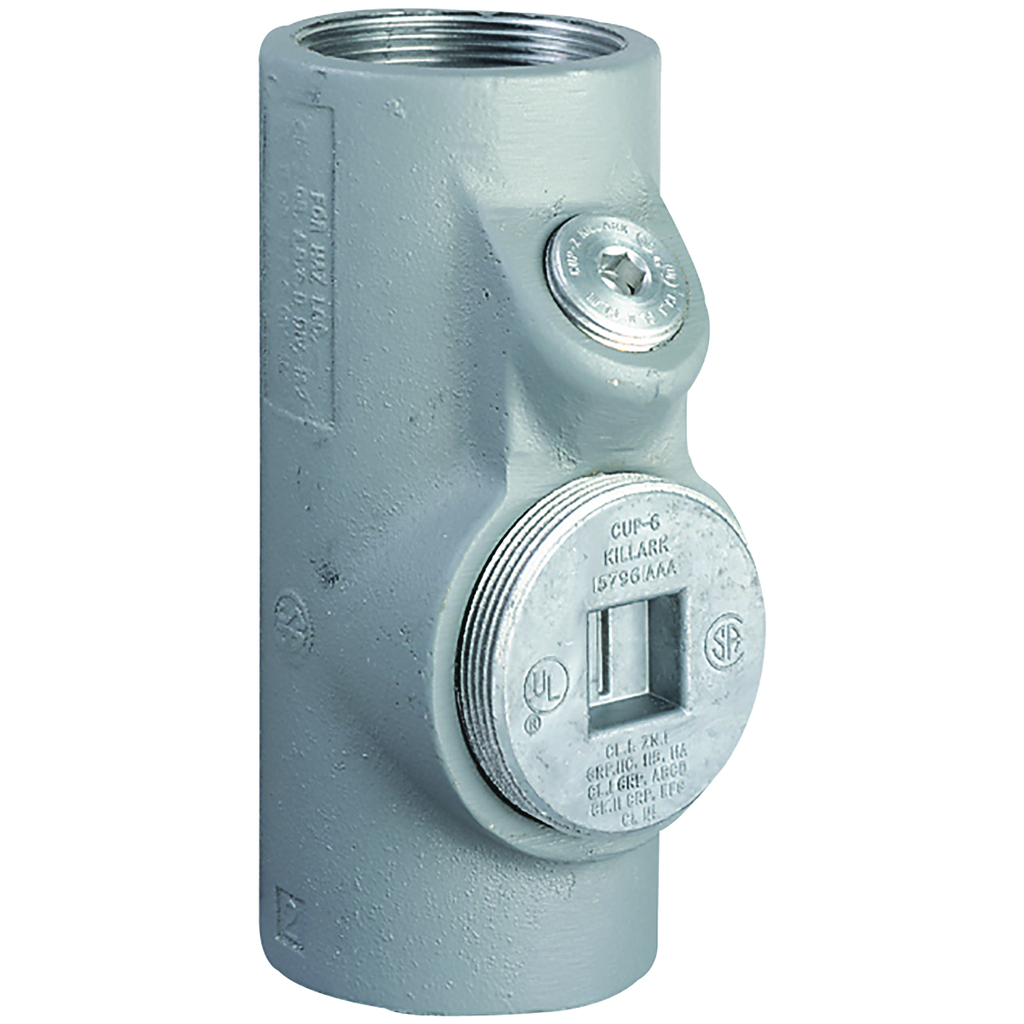

• Type: Sealing Fitting
• Finish Type: Powder Epoxy Paint
• Weight: 0.66 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D30
• Description - Invoice: SEAL FTG 1" AL FEMAL/FEMAL
• Freight Class Code: 06316009
• Harmonization Code: 7609000000
• Image Actual Or Representative: R
• Lead Time: 42 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Returnable Indicator: Yes
• Sub Class Code: D30D237
• CSA File Number: LR11716
• Gross Weight with Packaging: 0.66
• UL File Number: E10514
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: ENY
• Base Unit of Measure: EA
• BOX SIZE: 10.000x12.125x7.125 (in)
• Carton - Gross Weight per Pack: 16.500 lb.
• Carton - Number of Sub Packs: 25
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00783936111124
• Carton - Total Units: 25 EA
• Master Pack Description: Each

Certifications

• EU RoHS Indicator: Yes
