Features

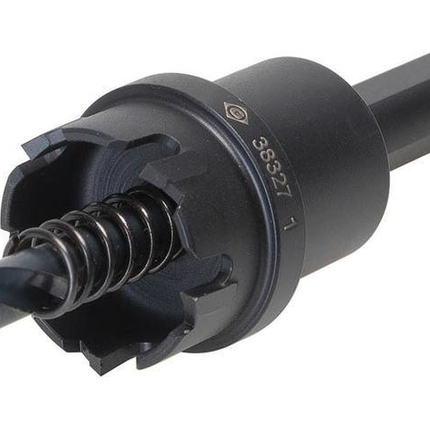

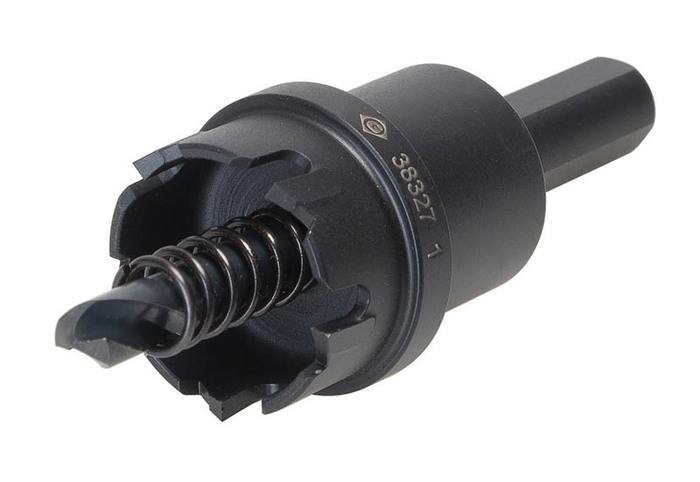

• Strong, durable one-piece construction for even longer life
• Split-Point Cobalt Steel Pilot Drill with step design – for fast, accurate cutting with less force
• Tungsten Carbide Teeth – optimized design for fast, easy cutting and maximum life in stainless steel – no oil required
• Flange Stop – eliminates over-drilling
• Slug Ejector Spring – quick, easy slug removal

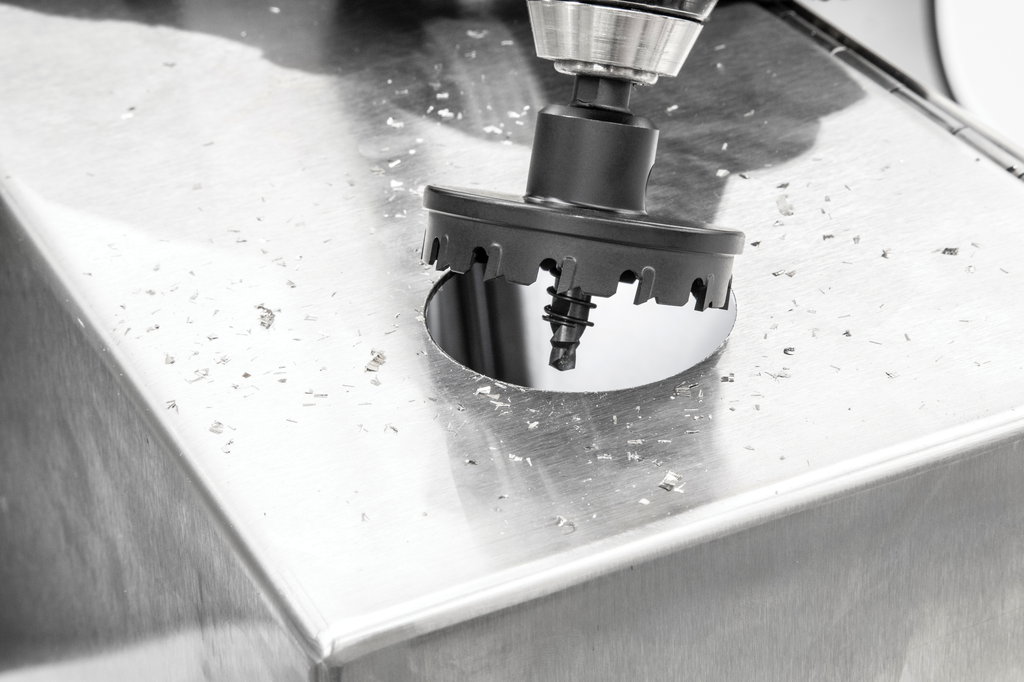

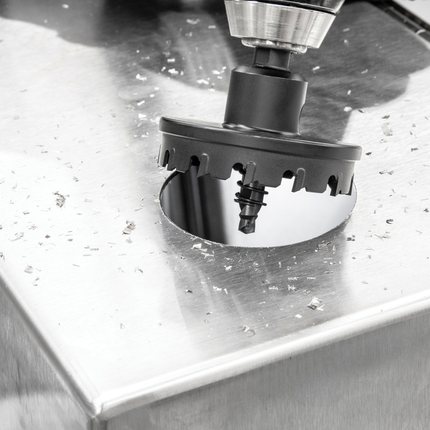

• Cuts round, burr-free holes

Application

• Stainless steel, mild steel, aluminum, copper, brass, fiberglass and plastics

Specifications

• Country of Origin: China
• Type: Carbide-Tipped Hole Cutter
• Hole Size: 7/8" (22.2 mm) for 1/2" conduit
• Shank Size: 1/2"
• Maximum Cutting Depth: 8 ga
• Cutting Edge: Tungsten Carbide Teeth
• Pilot Drill: Replacement 625-001 sold separately
• Pilot Drill Size: 1/4" x 1-7/8" (6 mm x 48 mm)
