Features

• Rated for Harsh and Hazardous locations (see specifications for ratings)
• Integral bushings
• Easy access covers
• Integral bushings. Easy access covers. Volume is 11.5 cu. in.

Specifications

• Country of Origin: Mexico
• Buy American Compliant: Contact Manufacturer
• Dimensions: 7.625 in x 5.75 in x 4 in
• Width: 5.750 in
• Each - Width: 5.750 in
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
• Application: For use in hazardous locations.
• Color: Gray
• Finish: Powder Epoxy Paint
• Height: 4 in
• Hub Size: 1"
• Length: 7.625 in
• Special Features: Integral bushings. Easy access covers. Volume is 11.5 cu. in.

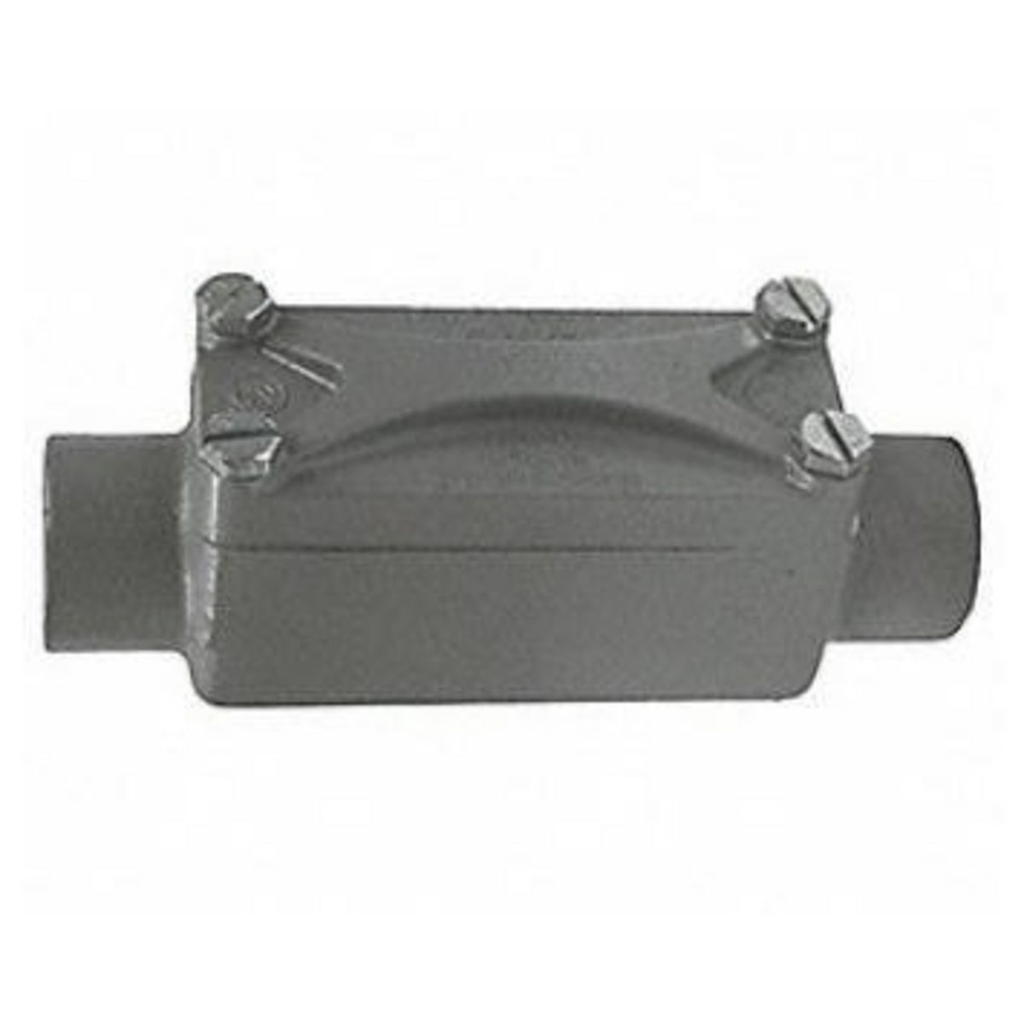

• Type: Conduit Body
• Finish Type: Powder Epoxy Paint
• ARRA Compliant: Contact Manufacturer
• Class Code: D30
• Description - Invoice: 1" C TYPE AL HAZ LOC FITTING
• Freight Class Code: 06316009
• Harmonization Code: 7609000000
• Image Actual Or Representative: R
• Lead Time: 42 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Returnable Indicator: Yes
• Sub Class Code: D30D237
• CSA File Number: LR11716
• Gross Weight with Packaging: 1.55
• Hub Pattern: C
• UL File Number: E10514
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: X Series
• Base Unit of Measure: EA
• Carton - SCC-14 Next Lower Level Sub Pack: 00783936890036
• Master Pack Description: Each

Certifications

• EU RoHS Indicator: Yes
