Features

• Tapered threads (NPT)
• Smooth internal bushing protects conductors
• Threaded for Rigid Conduit or IMC

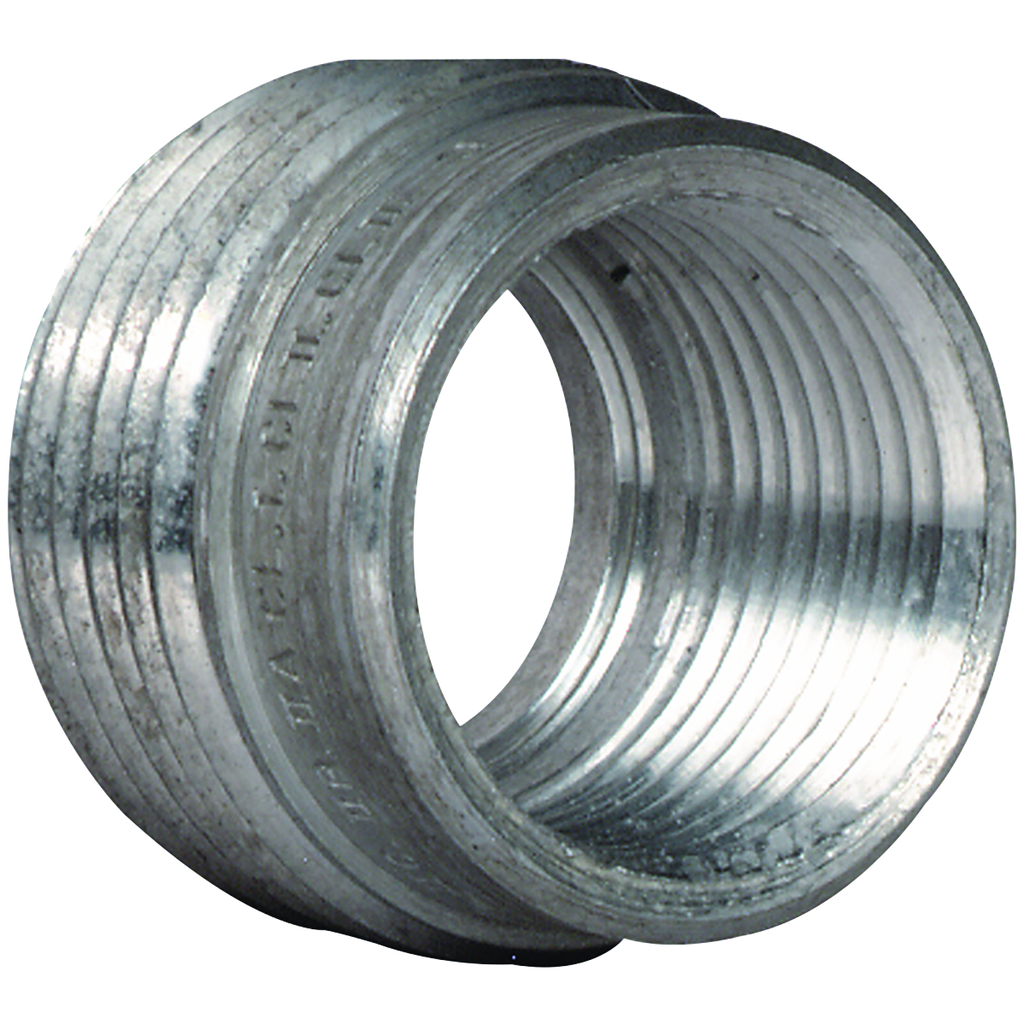

• Killark’s reducing bushings and adapters assist in reducing the trade size of tapped holes and its smooth internal bushing protects conductors. The wide variety of reducing ranges allow for almost any combination of size changes. It is available in copper-free aluminum and zinc plated steel.

Specifications

• Country of Origin: United States
• Buy American Compliant: Contact Manufacturer
• Dimensions: 1 in x 2 in x 2 in
• Width: 2.000 in
• Each - Width: 2.000 in
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G
• Application: To reduce the trade size of a taped hole or hub.
• Color: Silver
• Finish: Natural
• Height: 2 in
• Hub Size: 1-1/4" to 3/4"
• Length: 1 in
• Special Features: Killark’s reducing bushings and adapters assist in reducing the trade size of tapped holes and its smooth internal bushing protects conductors. The wide variety of reducing ranges allow for almost any combination of size changes. It is available in copper-free aluminum and zinc plated steel.
• Type: Reducing Bushing
• Finish Type: Natural
• Weight: 0.11 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D30
• Description - Invoice: 1-1/4" TO 3/4" REDUCING BUSHIN
• Freight Class Code: 06316009
• Harmonization Code: 7609000000
• Image Actual Or Representative: R
• Lead Time: 15 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Returnable Indicator: Yes
• Sub Class Code: D30D237
• CSA File Number: LR11716
• Gross Weight with Packaging: 0.11
• UL File Number: E10514
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: R
• Base Unit of Measure: EA
• BOX SIZE: 4.375x5.750x5.750 (in)
• Carton - Gross Weight per Pack: 2.200 lb.
• Carton - Number of Sub Packs: 20
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00783936570051
• Carton - Total Units: 20 EA
• Master Pack Description: Each

Certifications

• EU RoHS Indicator: Yes
